Once connected for Swidget Local, you can control and configure your device from a web browser. This requires that your Insert be already connected to your local Wi-Fi network and that your smart device (phone or tablet) be connected to the same network. You will also require the IP address of the your device. For more information on Swidget Local, please see this article.
1. Open your web browser and navigate to the address below (replace ### placeholder with device URL):
For Firmware 1.6.20 and newer
https://###.###.###.###/dashboard

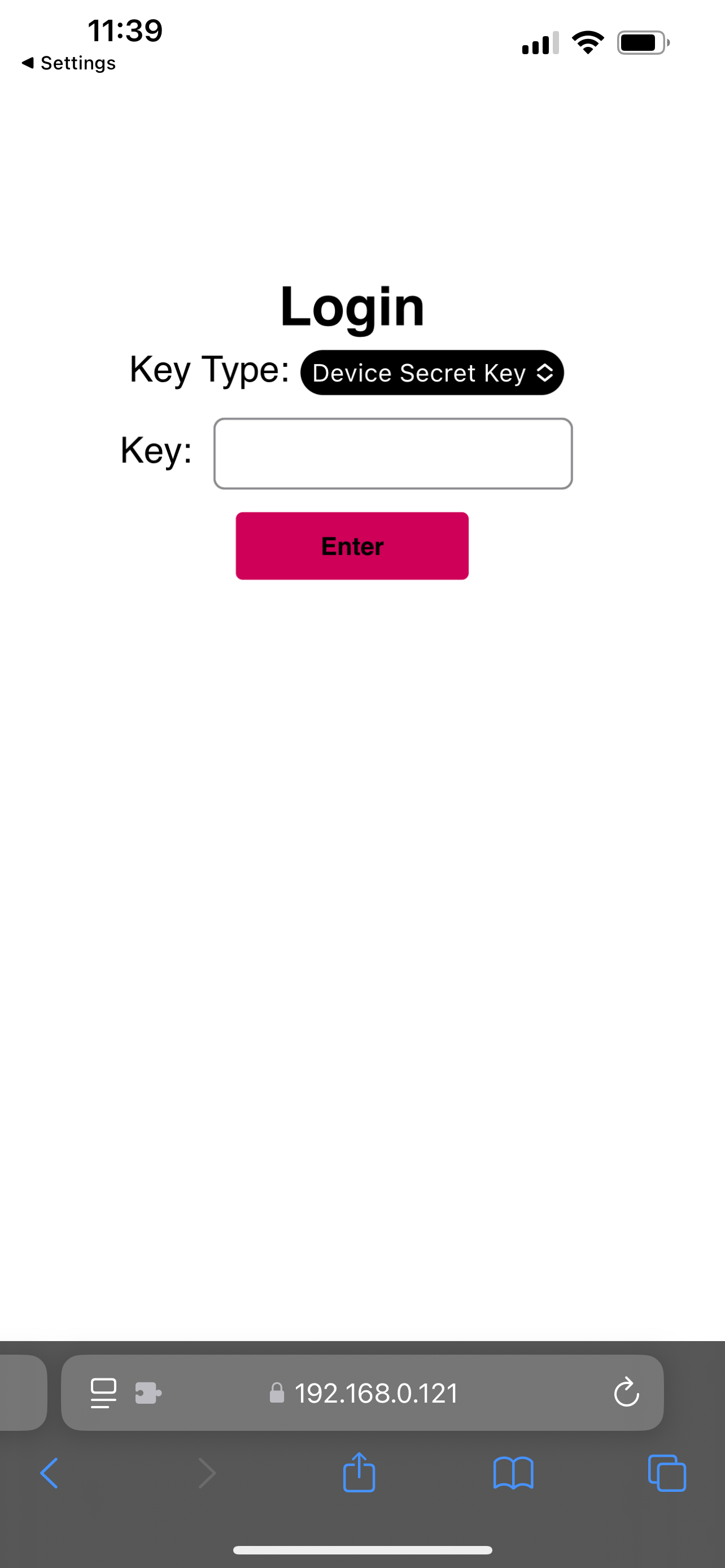

2. Enter the Secret Key that you created when you provisioned the device.
Control and Information
Select the Control tab to see the control and information options related to your particular Insert and Device combo. Control options can include the following:
- Switch or Outlet Power toggle
- Dimmer brightness
- USB control
Information related to your device may include:
- Temperature and Humidity
- Air Quality
- Power Draw
- Motion Status
Configuration
Available configuration options are related to your particular Insert and Device combo. Options include:
- Motion Sensor Sensitivity
- Vacancy Delay
- Switch options such as Multi-Switch Mode or Invert Toggle
- Temperature Calibration
