Once your Swidget devices have been setup for Swidget Local, they can be connected to Control 4 using Composer on a PC or Composer Express on your smart phone. Note: some features and capabilities require the fill Composer software.
- Before you start, please download Swidget Control4 Drivers.
- Open Composer and connect to your Control4 system/project.
- Select Driver from the top menu, and click Add or Update Driver or Agent. Select the drivers that you have downloaded from the link above.
- Once installed, your devices will appear in the Discovered tab under the Items window on the far left.

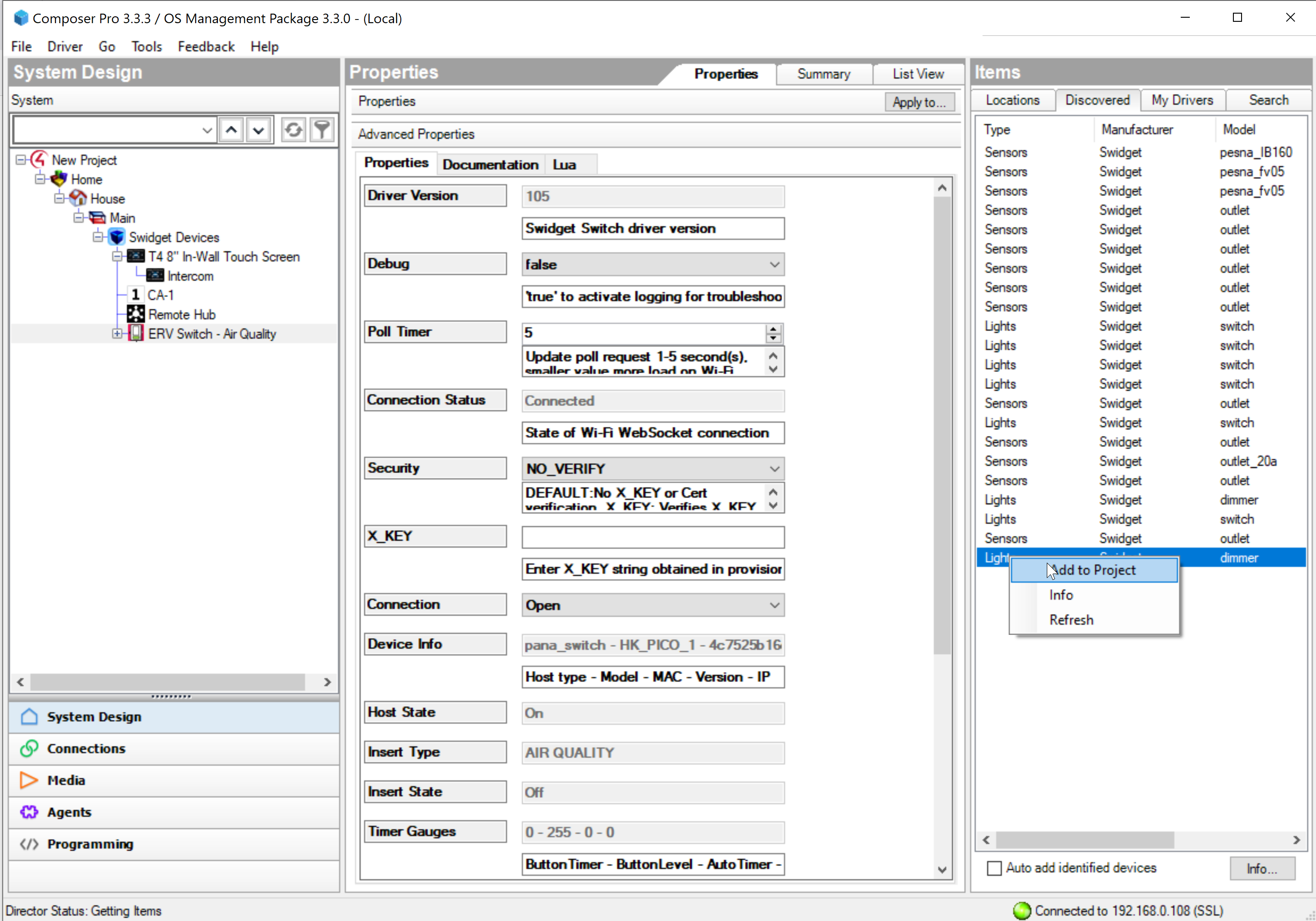

- Right-click your Swidget device and select Add to Project.

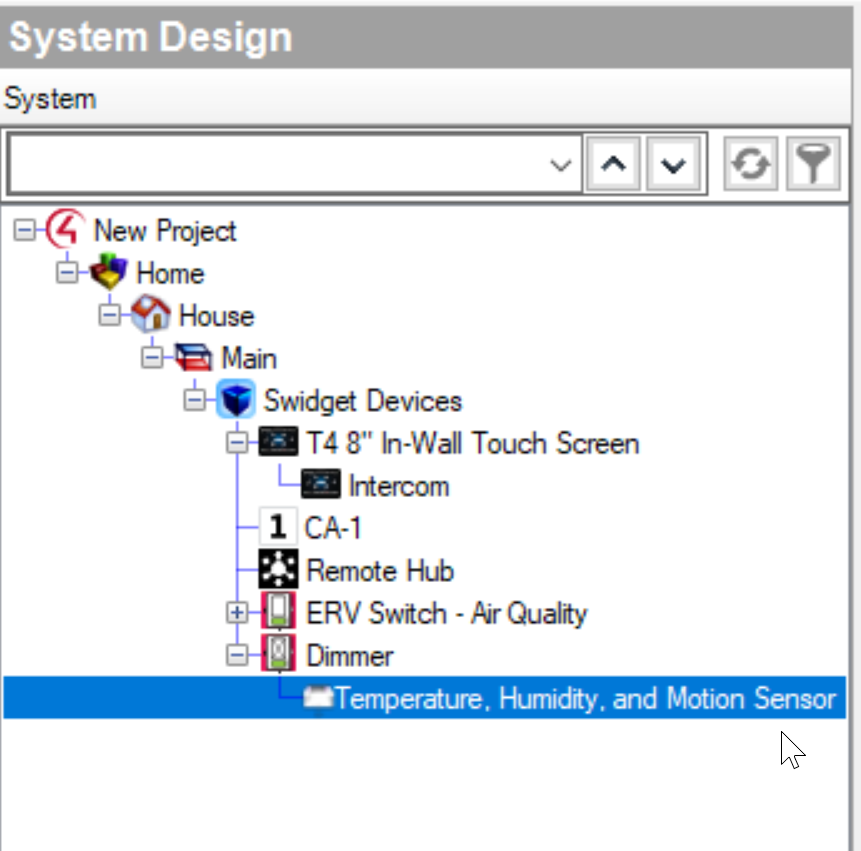

- The Swidget device will appear under the System Design window where you can choose a room and rename your device.
- To connect the device, make sure that you have it selected.

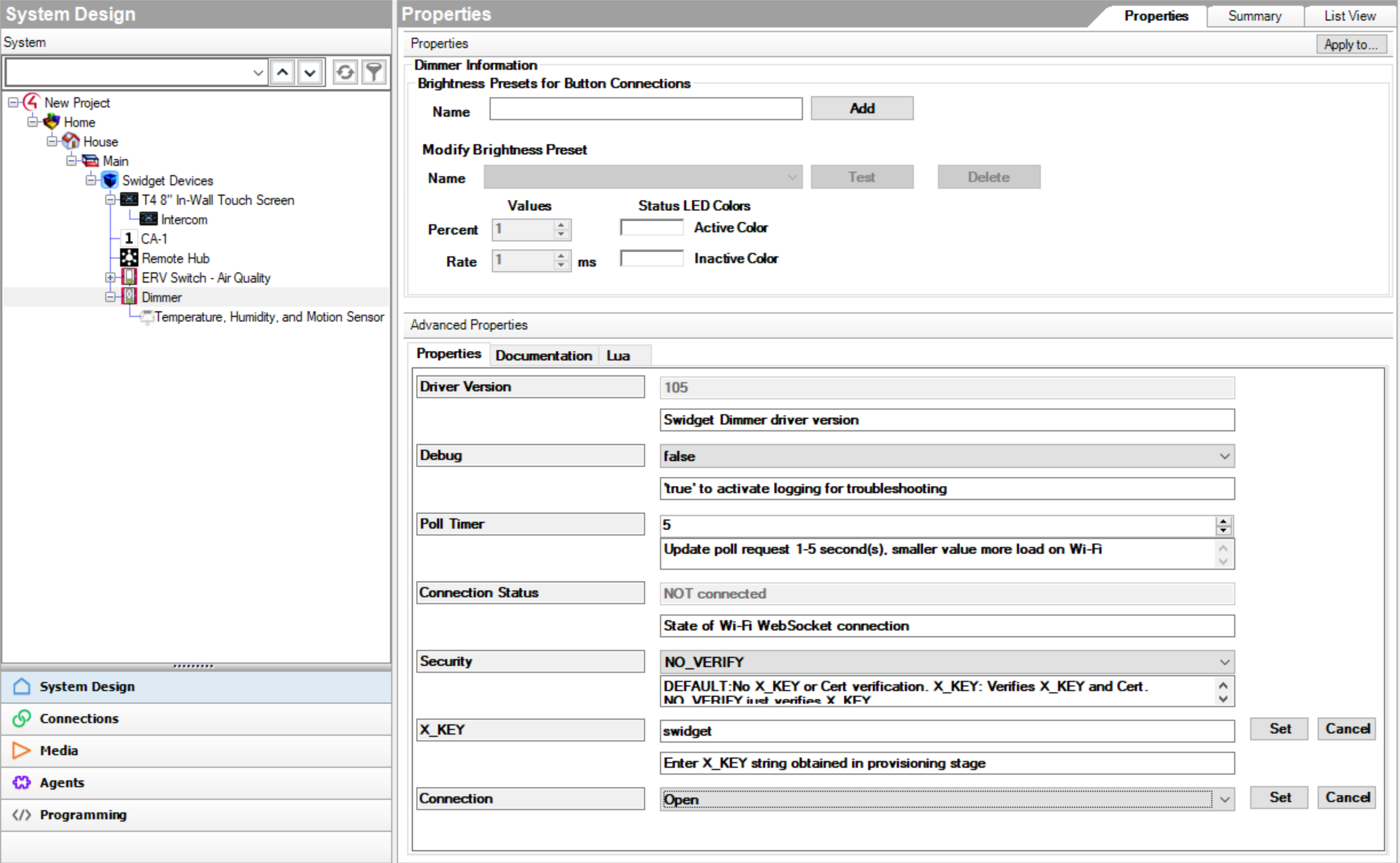

- Under the Properties window, change the Security to NO_VERIFY and enter the Access Key you created when you provisioned the device in the X_KEY field and click Set.
- Change the Connection type from Closed to Open and click Set.
- Your device should now be connected.
