Using the Swidget Wi-Fi Control Module with select Panasonic ventilation products, you can configure a local Balanced Mesh Installation with one or multiple groups without the need for a Wi-Fi or internet connection. This installation will continue to balance ventilation regardless of the home’s network or occupant as long as the modules are powered.

There are two methods to configure a balanced mesh installation:

1. Users without a Swidget account
2. Users with a Swidget account (Preferred)

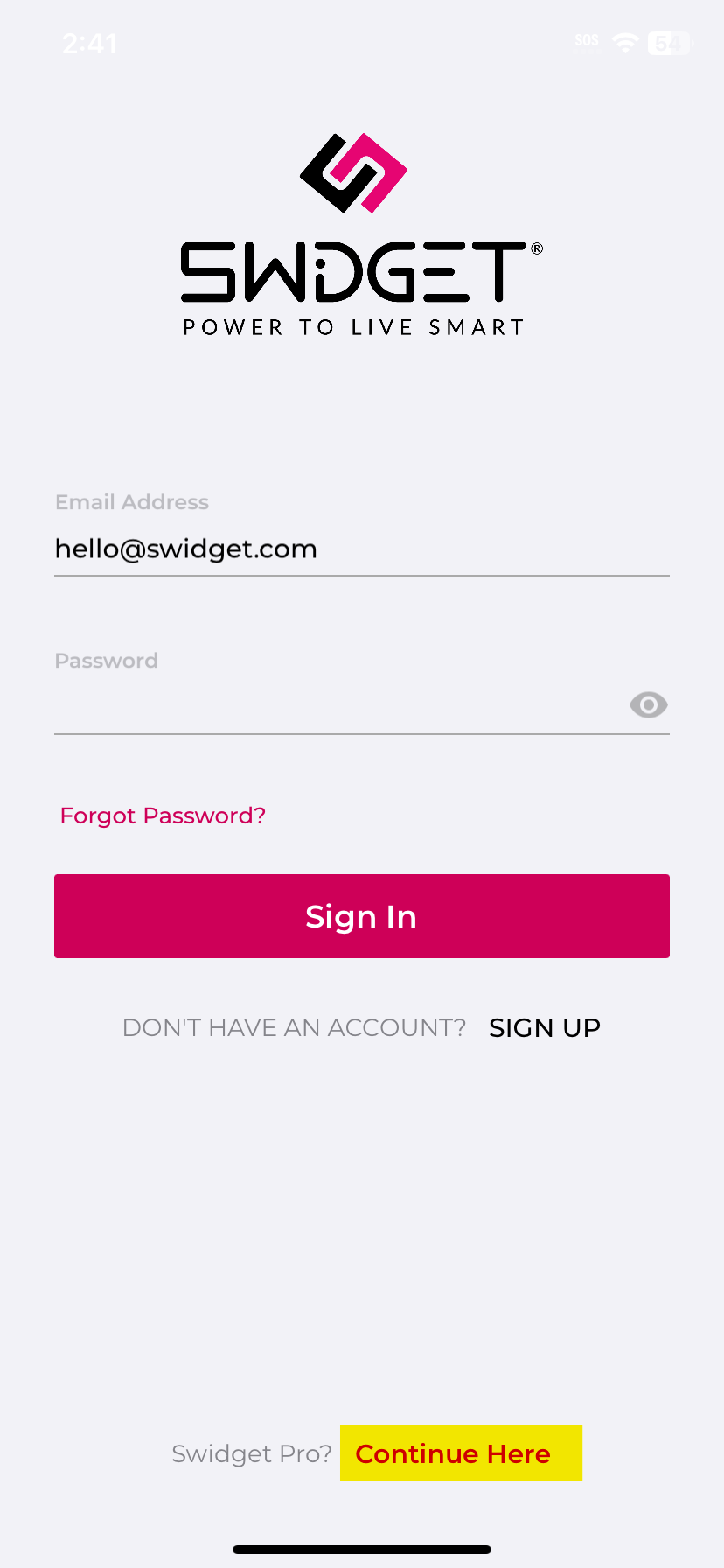

For users without a Swidget account, download the Swidget App from the iOS App Store or Google Play Store and tap on Swidget Pro from the log-in screen.

Note: Users without a Swidget account will not be able to join and edit a Balanced Mesh Installation once finalized. This is only possible by creating a Swidget account and logging into the App.

For users with a Swidget account, log into the Swidget app, navigate to “settings” and tap on Swidget Pro.

1. Create and name your Installation. An installation can be a home or an apartment and can contain multiple balanced groups.

2. Join your newly created installation by tapping its name.

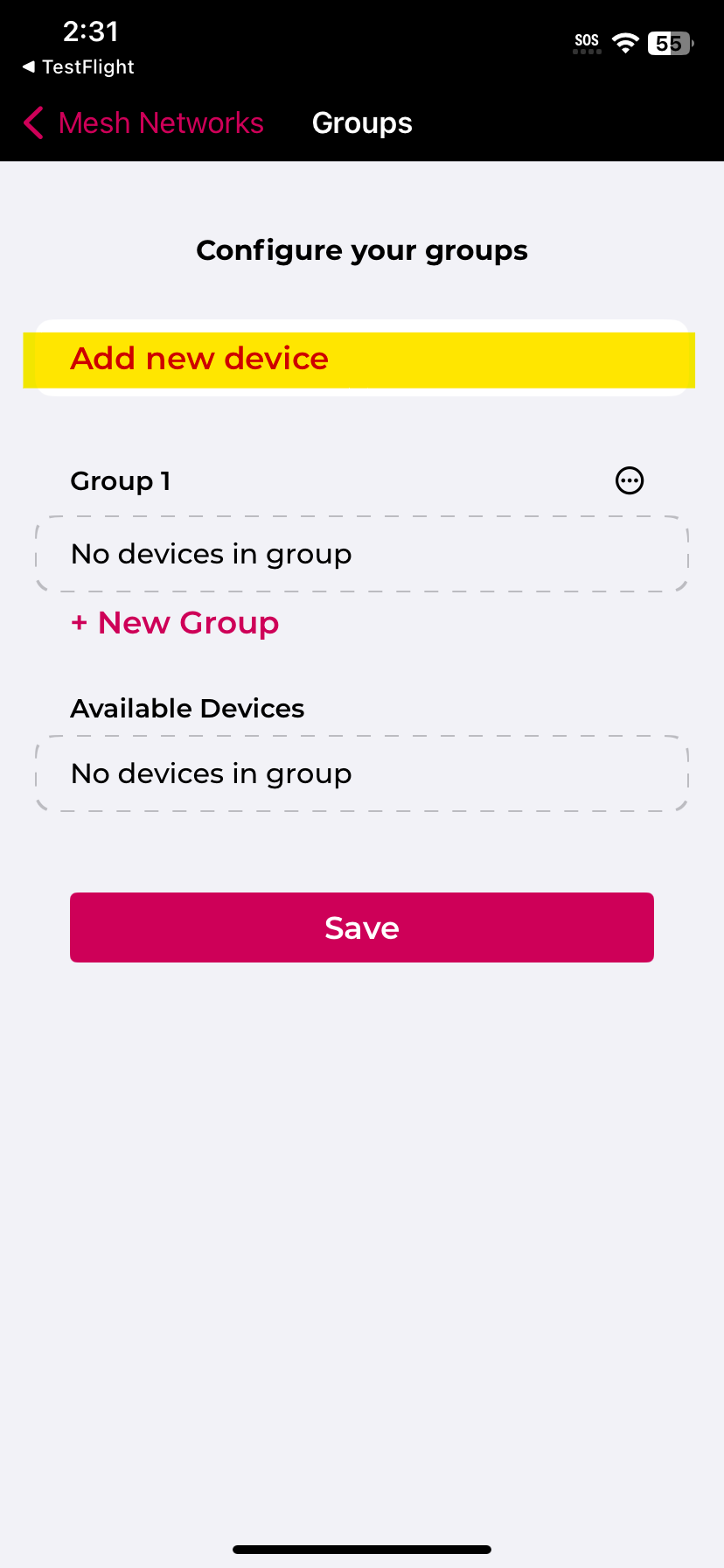

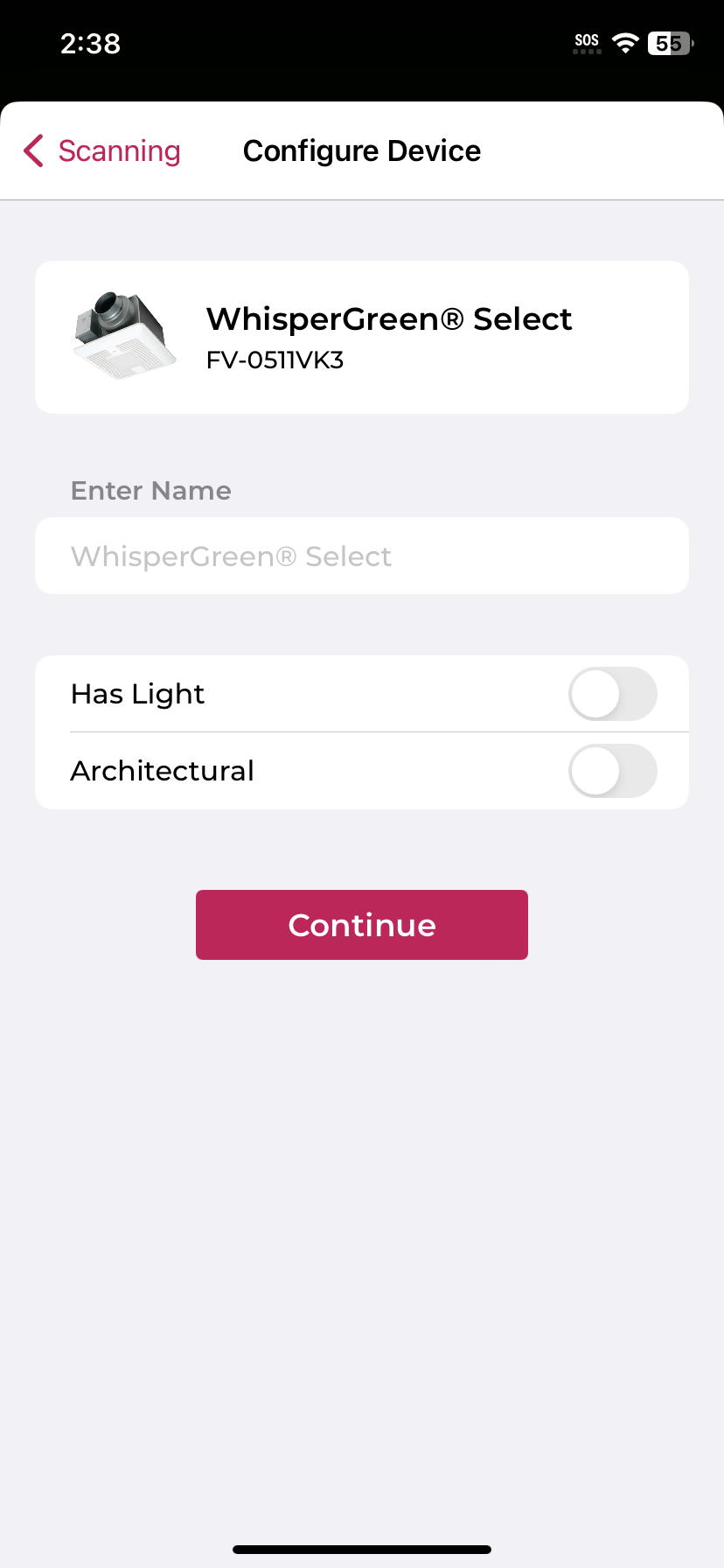

3. Make sure your Wi-Fi Control modules are plugged into compatible fans, powered on and in discovery mode. Add each individual device to the installation.

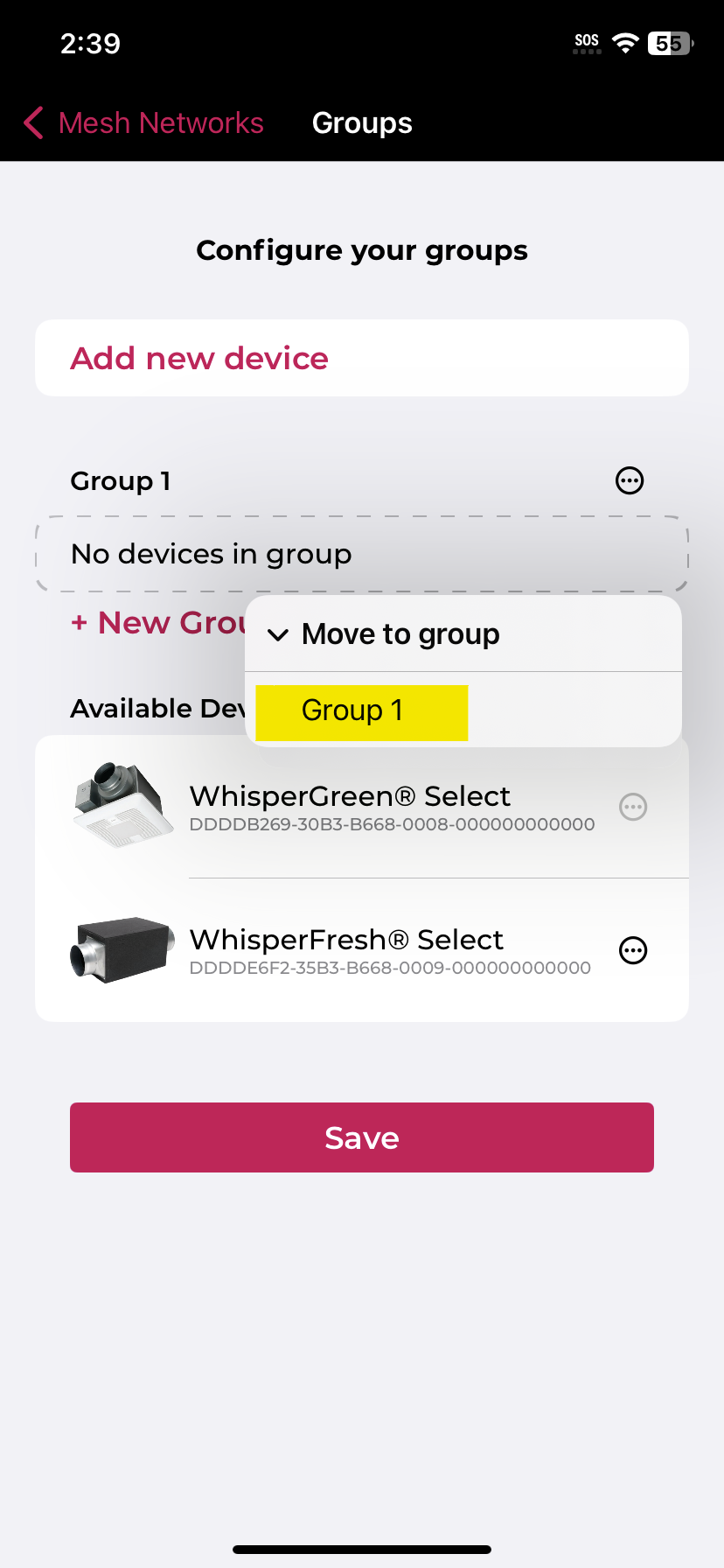

4. Assign fans to one or multiple groups. Balancing is contained within each group.

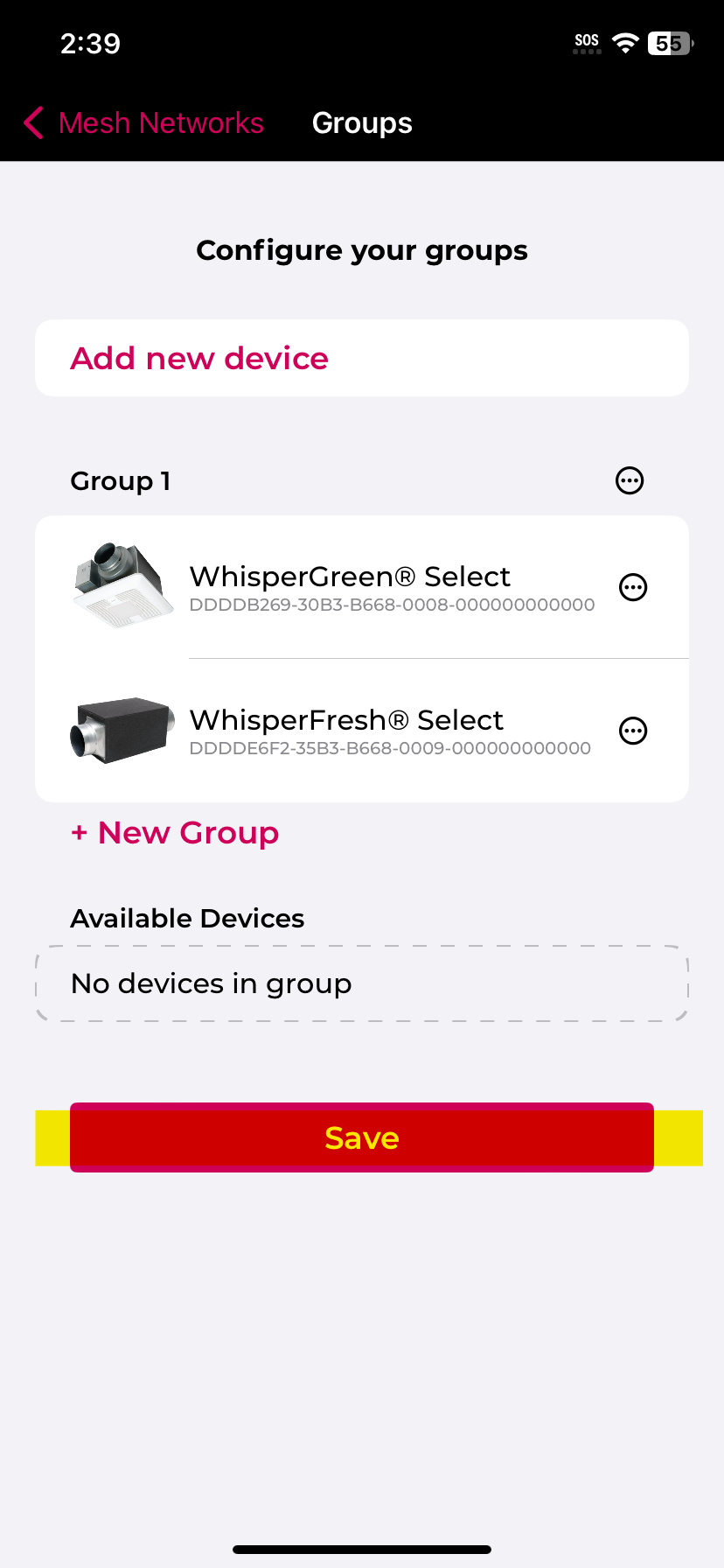

5. When installation is completed, hit Save if configured with a Swidget account or Finalize Installation if configured without a Swidget account.
