| Product Code | Product Name |
| FV-0511VK3 | WhisperGreen® Select Single Speed Fan, 50/80/110 CFM, Standard Grille |
| FV-0511VKL3 | WhisperGreen® Select Single Speed Fan/Dimmable LED Light & Night-light, 50/80/110 CFM, Standard Grille |
| FV-0511VKS3 | WhisperGreen® Select Dual Speed Fan, 30-110 CFM, Standard Grille |
| FV-0511VKS3S | WhisperGreen® Select Dual Speed Fan, 30-110 CFM, Architectural Grille |
| FV-0511VKSL3 | WhisperGreen® Select Dual Speed Fan/Dimmable LED Light & Nightlight, 30-110 CFM, Standard Grille |
| FV-0511VKSL3K | WhisperGreen® Select Dual Speed Fan/Dimmable LED Light & Nightlight, 30-110 CFM, Architectural Grille |
| FV-1115VK3 | WhisperGreen® Select Single Speed Fan, 110/130/150 CFM, Standard Grille |
| FV-1115VKL3 | WhisperGreen® Select Single Speed Fan/Dimmable LED Light & Night-light, 110/130/150 CFM, Standard Grille |
| FV-15NLFS1H | WhisperFresh® Select Hardwired Models |
There are two plug and play ports on the WhisperGreen. The Wi-Fi Module can only be used with the plug and play port labelled Wi-Fi module.

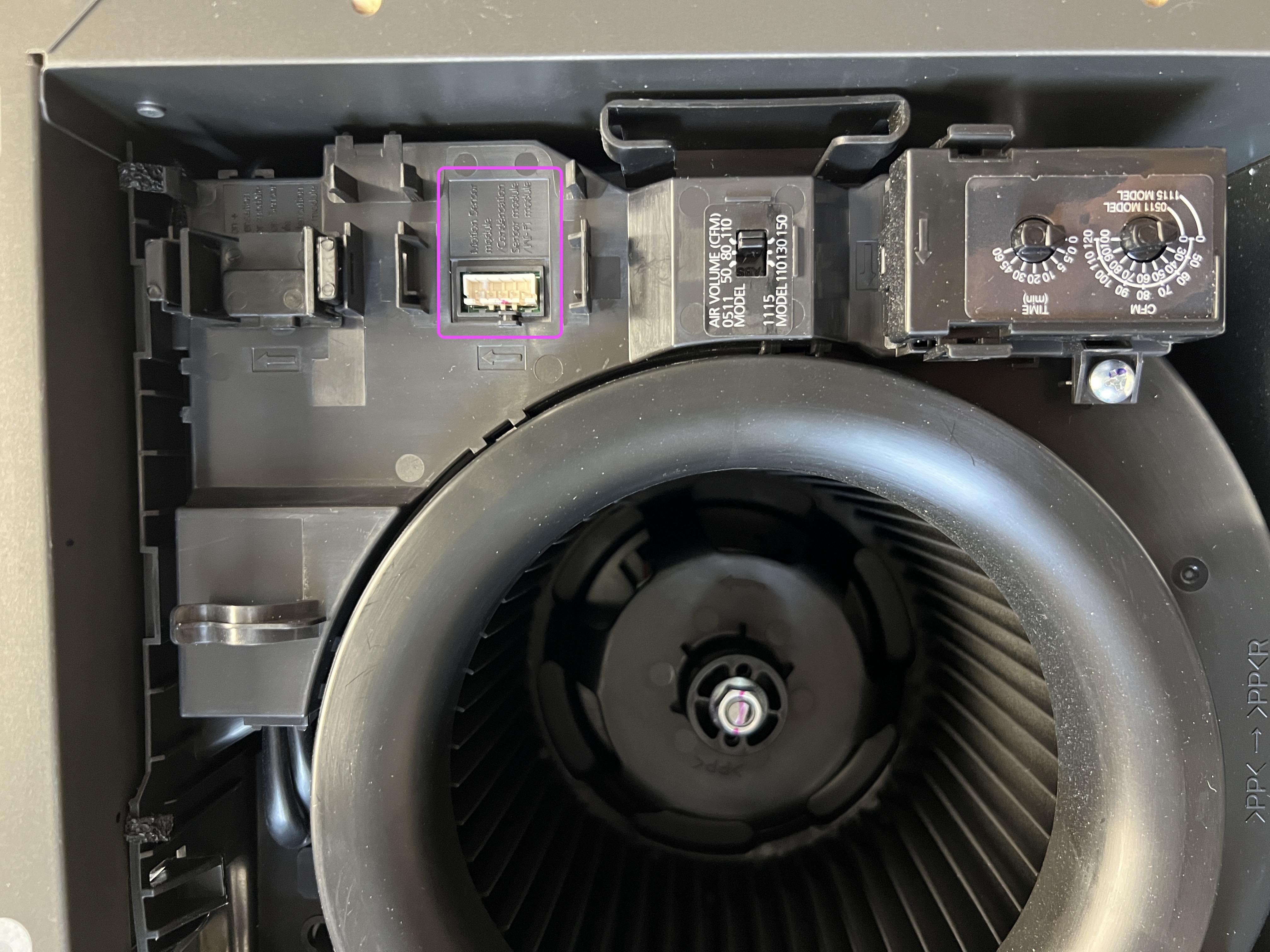

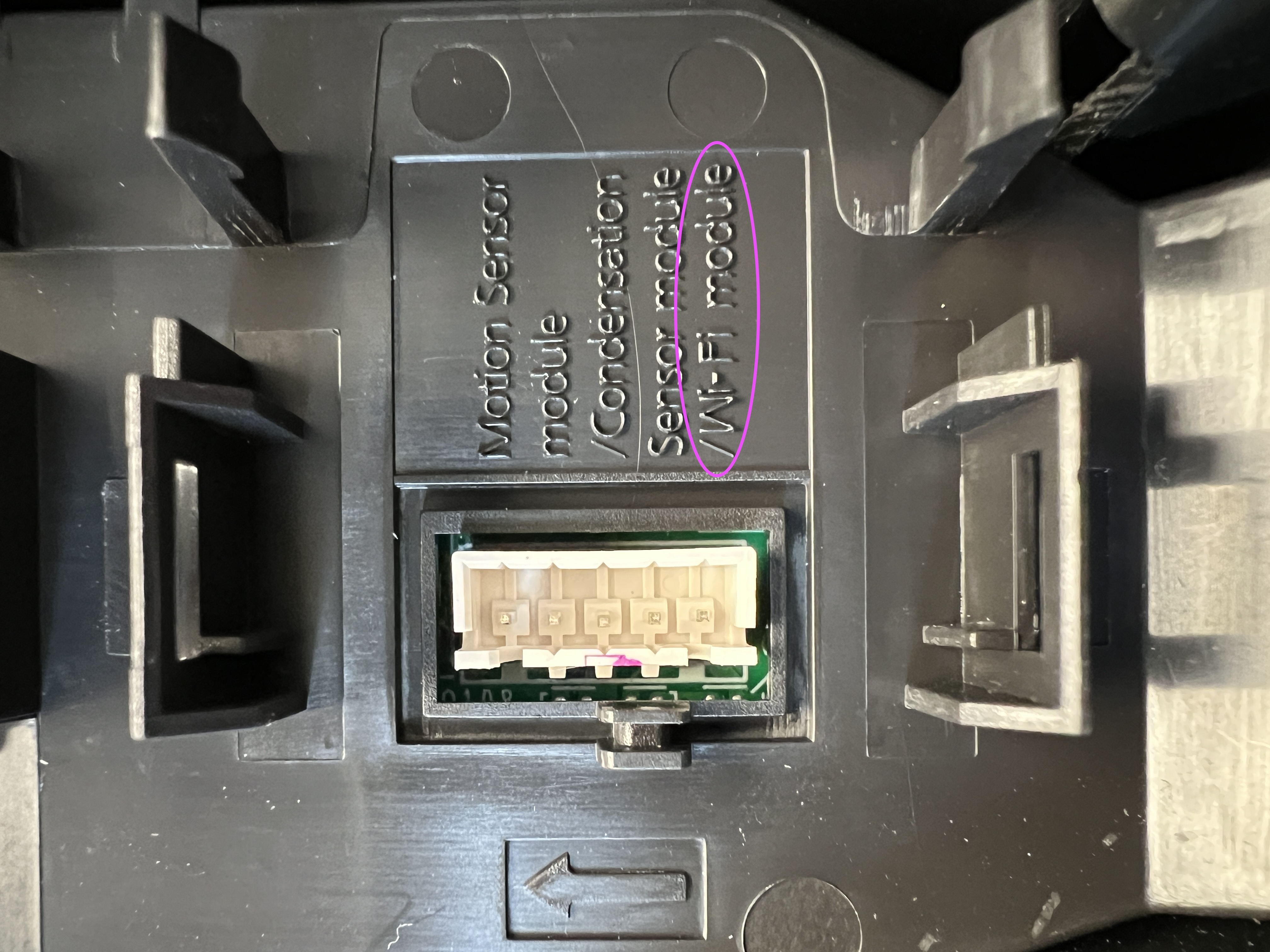

As shown in the picture below, when the fan orientation has the ports stacked vertically, the Wi-Fi module is the second from the top.
For a list of compatible fans, please see this article.
If your Wi-Fi Control Module is not discoverable, please check the following:
- Ensure the module is properly inserted in a compatible Panasonic fan, into the slot mark as Wi-Fi Module, an the module's LED lights up.
- Verify that your mobile device's Bluetooth is turned on and you're within range of the Wi-Fi Control Module.
- Make sure the Wi-Fi Control Module is in discovery mode (Blinking Green LED). If it isn't, open the module's door and press the button momentarily. The module will remain in discovery mode for 5 minutes.
The Wi-Fi Control Module has been inserted in an incompatible Panasonic fan model.
Swidget Pro is a feature within the Swidget App which allows advanced product functionalities to be configured and edited. The Wi-Fi Control Module's Balanced Mesh can only be configured through Swidget Pro.
Swidget Pro can be accessed without an account, at the bottom of the login-in page, or with an account after logging in, in the settings page.
- Typically, only one WhisperFresh Select fresh supply air fan is needed, as it can bring in up to 150 CFM (Cubic Feet per Minute) of fresh air from outside.
- With one WhisperFresh Select, you can install up to two WhisperGreen Select exhaust fans to balance air flow.
- It's possible to install more than one WhisperFresh Select fan:
- This can combine up to 300 CFM of fresh air intake.
- Multiple WhisperFresh Select fans can auto-balance with multiple WhisperGreen Select exhaust fans.
- Recommendation: If using more than one WhisperFresh Select fan, divide them into equal numbers of groups for individual Mesh balancing.
