Instructions for installing the Swidget Wall Switch in the single-pole configuration are listed below. If you are not sure about any part of these instructions, consult an electrician.
Use the Switch Wiring and Installation Guide to help identify compatible switch locations.
Note: The Swidget Wall Switch requires a neutral wire
INSTALLATION:
- Turn off power at circuit breaker or fuse.
- Remove faceplate and old switch from wall box (leave wires attached). Note: It helps to take a picture of the wiring setup for future reference.
- Remove the load, line, and ground wire from your old switch. Note: To determine which wires are the load and line, cap each of the wires, turn the power back ON at the breaker, and check which of the wires is energized using a voltage detector. Turn the power OFF at the circuit breaker before moving on.

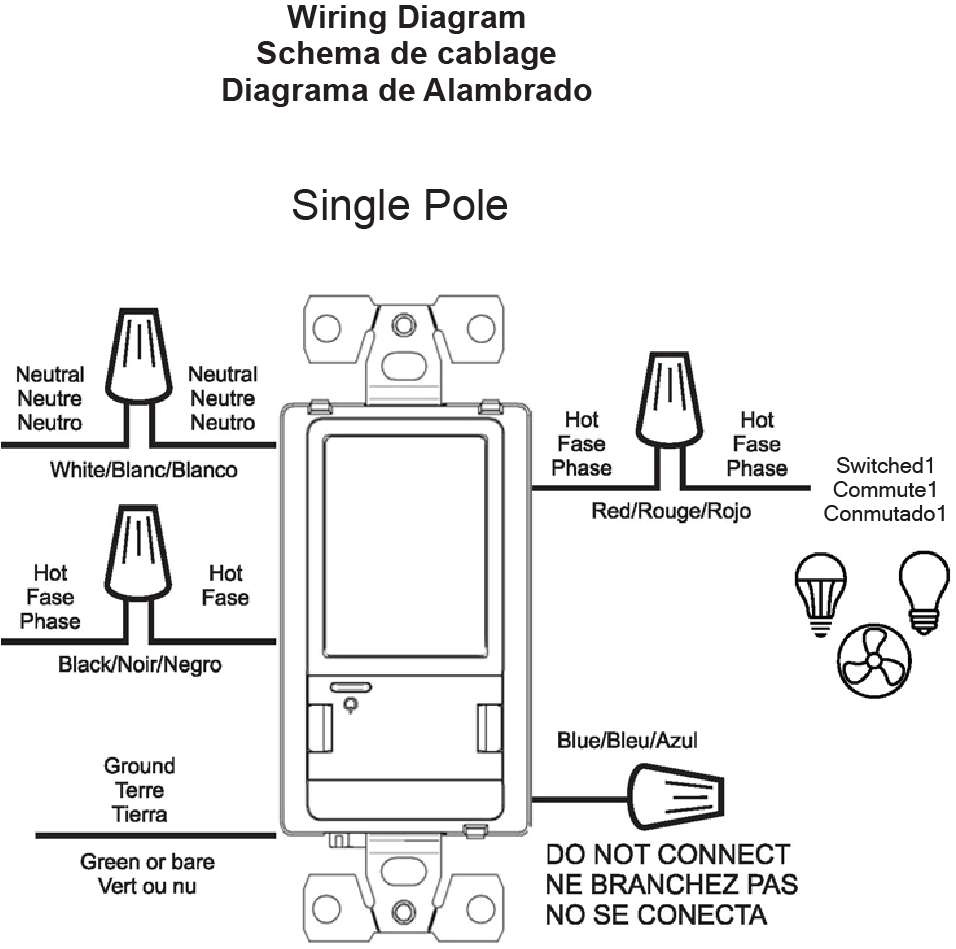

- Install the Swidget Switch according to the diagram below. Use the wire nuts provided. The wire nuts can accept three 14 AWG wires.
- Install the new switch into the wall box and install your faceplate (sold separately).
- Turn the power back ON at the circuit breaker.
